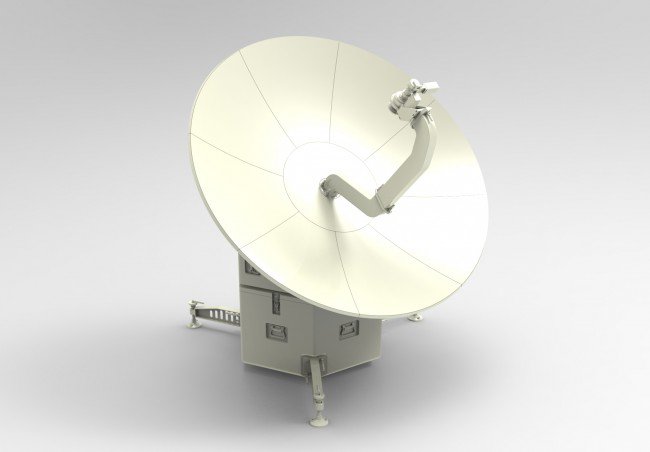

1.8m Auto transportable antenna |
|
|
The antenna structure uses a lot of carbon fiber composite material, high strength, light weight; The antenna bracket is also an antenna storage box, which can be stored in a carbon fiber box no larger than 850*850*510mm.The antenna has the advantages of low sidelobe, high gain and high efficiency.The antenna system is equipped with positioning, orientation system, position memory unit, drive unit, automatic protection unit, high-performance satellite beacon receiving unit and other equipment.When the location information cannot be obtained, you can manually input local information to quickly complete the target pointing and tracking in special cases.Automatic and manual control modes are provided to cope with emergency operations in various environments.
