| 1.8M KA BAND ETER EARTH STATION ANTENNA |
|
|

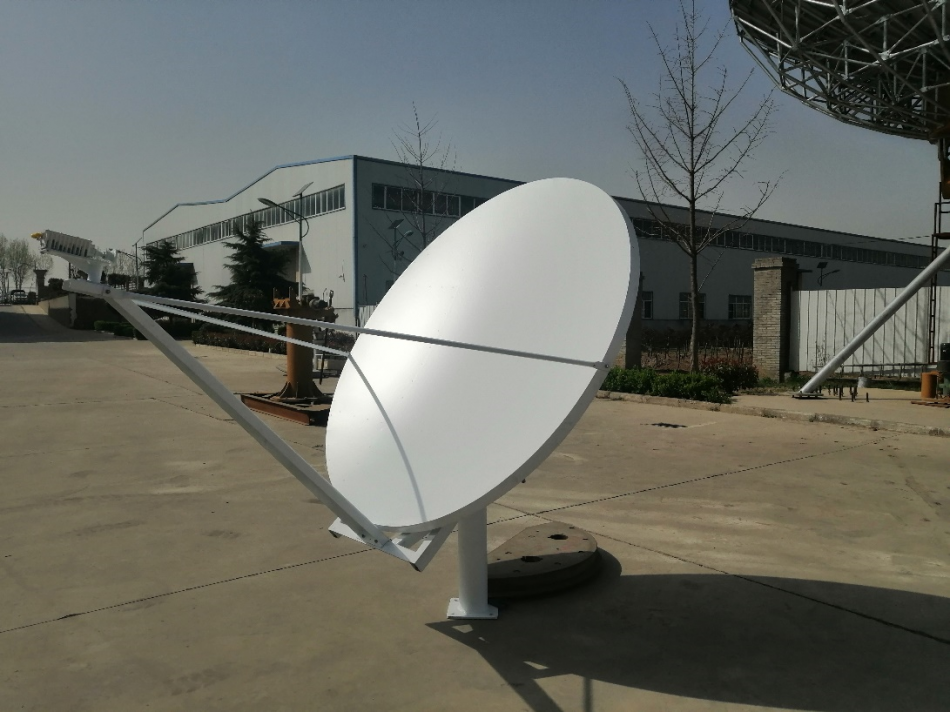

1.8M antenna reflector incorporates stretch-formed panels with matched radials. It features an innovative offset design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy required for Ku-band and C band operation.
