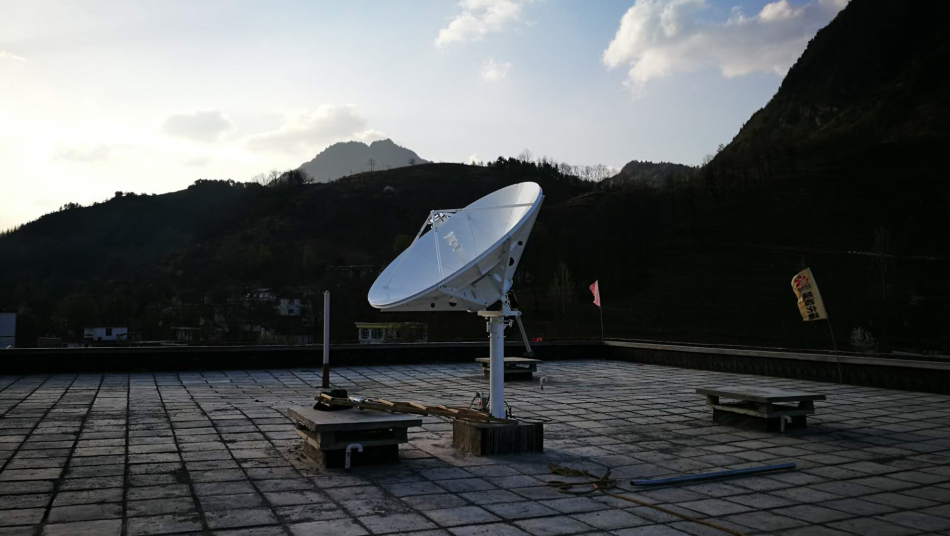

| 2.4M C BAND ETER EARTH STATION ANTENNA |
|
|

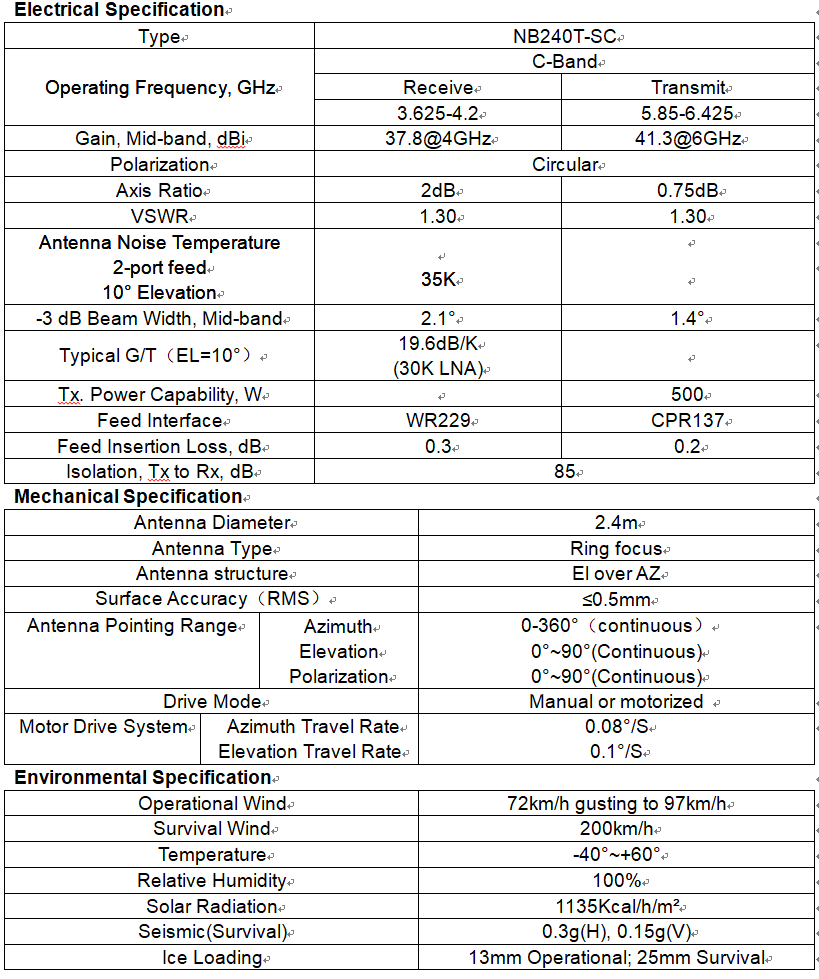

2.4M antenna reflector incorporates stretch-formed panels with matched radials and hub for ease of field alignment.It features an innovative Ring Focus feed and sub-reflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy required for Ku-band and C band operation. 2.4 M antenna RF specification can meet to FCC Regulation25.209, IESS and ITU-RS.580-5, INMARSAT, ASIASAT, INTELSAT, APT and CHINASAT, etc.
