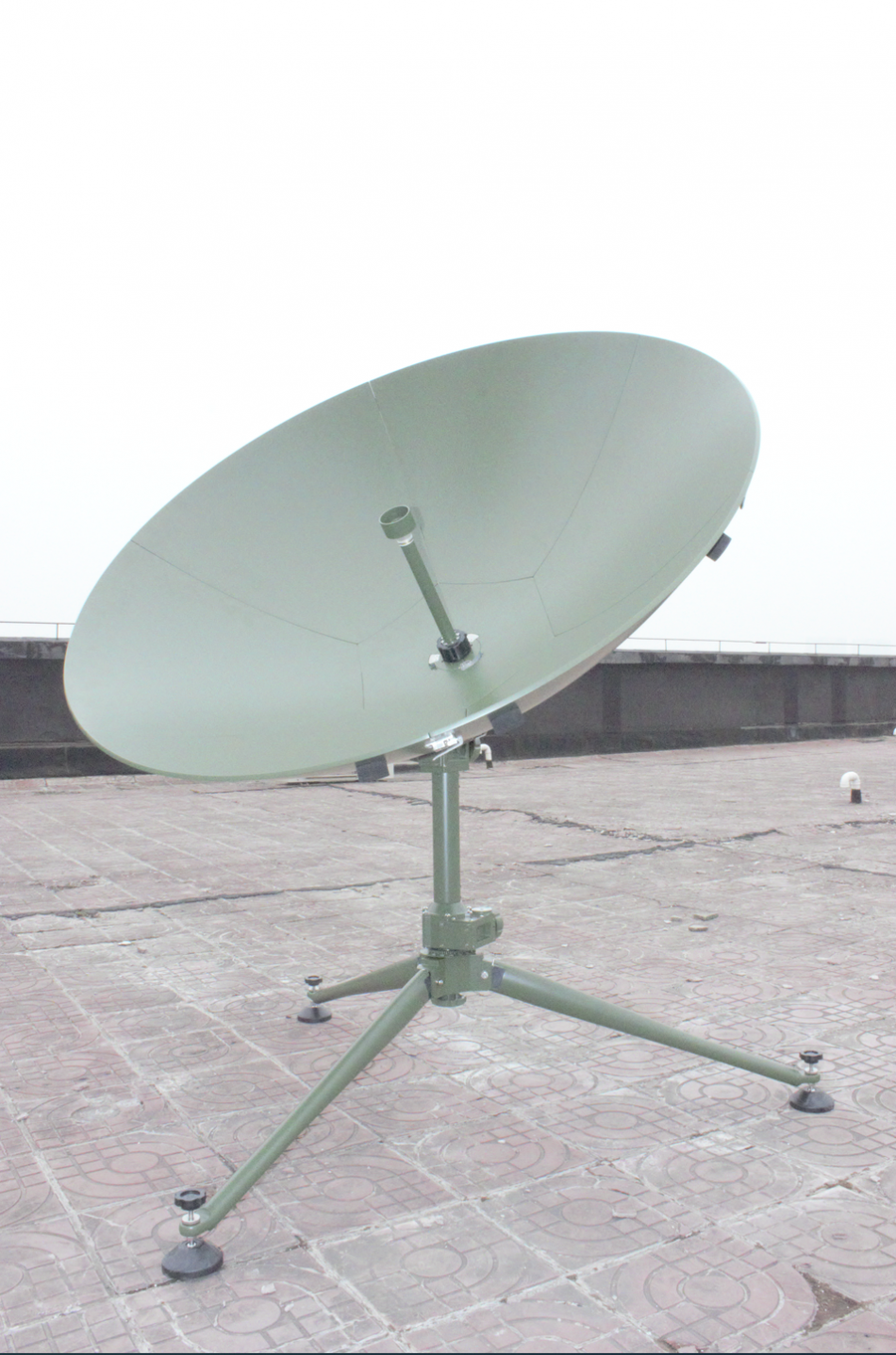

| 1.2m Ku band manual flyaway antenna |
|
|
Exquisite structure design, easy to adjust to search the satellite (optional auxiliary satellite finder)Through the optimized design of reflector and RF branch, it has excellent RF performance.The antenna has high integration with light weight and good portability.One person installed it in 7 minutes. with light weight, high strength, easy to operate.The whole antenna disassembly without tools, easy to operate.
|
Product Name
|
1.2m Ku band manual flyaway antenna
|
|
Type
|
NBB-S120C1-02
|
|
Frequency
（GHz）
|
Rx：10.7～12.75 GHz
|
|
Tx：13.75～14.5 GHz
|
|
Pol mode
|
Linear
|
|
Port isolation
|
Rx：≥ 85 dB
|
VSWR
|
≤ 1.35
|
|
Tx：≥ 40 dB
|
The first sidelobe
|
≤ -14 dB
|
|
Gain
（dB）
|
Rx
|
41.5+20lg(f/12.5)
|
|
Tx
|
42.6+20lg(f/14.25)
|
|
Rotation
range
|
Az：±360°
|
|
El：0°～90°
|
|
Pol：±90°
|
|
Power capacity
|
≤1000w
|
|
Operating temperature
|
-40°C～+60 °C
|
|
Storage
temperature
|
-60°C～+70 °C
|
|
IP Grade
|
IP65
|
|
Operating
wind speed
|
11 m/s
|
Survival
wind
|
18m/s
|
|
Humidity
requirements
|
Not more than 95% (20 ° C)
|
Protection
level
|
IP65
|
|
